working principle

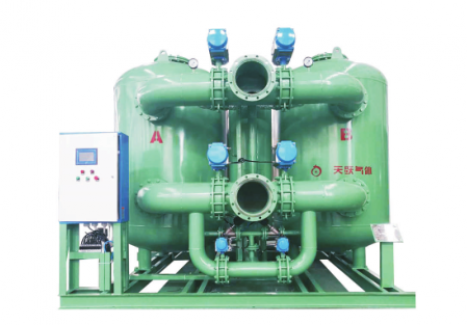

TYB micro-regenerative dryer Pressure swing adsorption using high-temperature regeneration principle of compressed air drying is a device that absorbs the advantages of heat regeneration and non-thermal regeneration of the product developed is an energy-efficient dryer, regeneration Of the gas in the micro-heater after the temperature is used to purify the adsorbent in the adsorption tower regeneration, can save the regeneration of gas consumption, regeneration effect is good, adsorption work longer.

Features

Set the automatic pressure, pressure process steps, reducing the impact of air flow on the adsorbent.

Flange filling port and discharge port, easy to replace desiccant.

Scientific flow rate design, the choice of high-quality adsorbent to ensure that the product gas dew point stability.

Special gas distributor to ensure uniform air distribution, the compressed air and adsorbent full contact, to prevent adsorption "dead ends" and "tunnel effect" produced.

Using PLC program controller, liquid crystal display, touch-type buttons, and adjust the work under the conditions of regeneration time.

Drying and regeneration status display, automatic temperature control, can save energy.

Control of air supply leads from the dry air outlet of the adsorption tower, to avoid oil and water pollution control valves and gas lines to prevent valve rust and gas blocked.

High-quality heating and control components to ensure long-term reliable operation of equipment.

High-quality pneumatic valve switch quickly and efficiently durable.

Technical Parameters

Working pressure: 0.6 ~ 1.0Mpa (according to user requirements to provide 1.0 ~ 3.0Mpa)

Intake air temperature: ≤ 45 ℃ Pressure drop ≤ 0. 023 Mpa

Atmospheric pressure of product gas Dew point: ≤-40 ℃ (alumina), ≤ -60 ℃ (molecular sieve)

Regeneration consumption: ≤ 4 ~ 6%
