working principle

Freezing dryer is the use of frozen dehumidification principle, compressed air drying equipment, the use of imported high-quality components, reliable performance, stable operation, low noise, low energy consumption, no basic installation, it is more widely used.

Gas system

The compressed air is cooled down to 2 ° C ~ 10 ° C by the efficient pre-cooler ③ and the evaporator ④, and then enters the air-water separator ⑥ to remove the condensed water, finally returns to the high-efficiency precooler for reheating, recovering part of the heat and obtaining stable dew point compression Air, and can effectively prevent pipe condensation.

Refrigerant system

After the refrigerant is supercharged in the refrigeration compressor, the refrigerant is condensed or cooled, and then converted to a cryogenic liquid into the evaporator ④ to absorb the heat in the compressed air and then vaporize, and then circulated through the gas-liquid separator to circulate and compress the refrigeration compressor.

1. Air-cooled front cooler

2. Fan motor (high temperature type configuration)

Precooler

Evaporator

5. Flow-type water mist separator

6. Centrifugal drop separator

7. Maintenance of air gun

8. Automatic drainage

Air-cooled condenser

10. Air pressure gauge

11. Low-pressure refrigerant (temperature) table

12. Capillary or expansion valve

13. Hot gas bypass valve

14. Dry the filter

15. High and low voltage protection switch

16. Condensation control switch

Air-cooled condenser

Refrigerant compressor

19. Compressed air inlet

Compressed air outlet

21. Intake

22. Outlets

23. Water regulating valve

24. Water-cooled condenser

25. Water-cooled front cooler (high-temperature configuration)

Features

Long-term use of reliability

Scientific process design, dehumidification effect, air pressure drop is small;

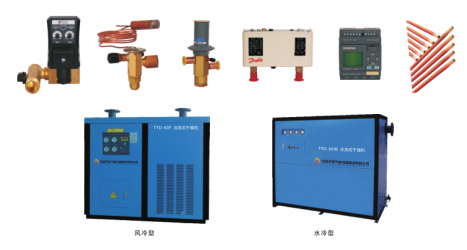

High-quality components, refrigeration compressors, refrigeration components are selected internationally renowned brands;

High and low voltage protection device;

Set the hot gas bypass valve, the load decreases or increases when the opening can be closed, to avoid refrigeration compressor freezing and ensure dew point stability;

Using electronic drainage or automatic drainage;

Lowest energy consumption

The use of high-quality threaded brass, heat transfer area, the effect is good;

High efficiency precooler to recover part of the cold, high efficiency and energy saving;

Refrigerant system and the outer surface of the evaporator insulation to reduce cold loss;

Stable product gas dew point

Advanced control system

Advanced temperature control system;

Hot gas bypass valve and thermal expansion valve consisting of dual automatic balance function to ensure a stable dew point;

Advanced control system

Intelligent cold dry machine Siemens PLC in Germany can be online LCD digital display condensation temperature, evaporation temperature, temperature, dew point temperature (with dew point meter), with simple operation, automatic control, a variety of fault alarm, temperature control Monitoring and remote control delivery advantages;

Can be linked with the air compressor;

Easy to operate, easy to maintain

Electronic drainage or automatic drainage timing cleaning;

Clean the condenser regularly with a clean air gun (air-cooled type);
