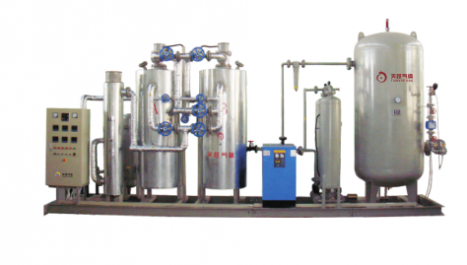

product description

Under a certain temperature, the residual oxygen in the nitrogen oxidizes with the carbon catalyst to generate carbon dioxide. The chemical reaction formula is: C + O = CO, so that the oxygen content of N2 in the nitrogen is less than or equal to 5 ppm, and then the pressure swing adsorption process removes the CO and Moisture, followed by fine filtration to remove impurities in the nitrogen to give 99.9995% purity of 2 to nitrogen. Burning nitrogen purification device for the consumption of the catalyst, the device needs to be added after a certain period of accumulated operation, its greatest feature is not required with a hydrogen source and the outlet of nitrogen does not contain hydrogen, the device needs to nitrogen production of 1.1 times the configuration of raw nitrogen , The purity of the raw material nitrogen is generally 99.9%, its operating cost is the best.

The TYN-CA type is a single deoxygenation column process. The user needs to shut down the appropriate time when adding the catalyst, which is suitable for continuous intermittent users.

The TYN-CB is a dideoxy column process. Users do not need to stop the catalyst when adding catalyst. The catalyst can be added under the continuous operation of the equipment, which is suitable for users who use continuously without interruption.

Features

Efficient carbon catalyst, advanced technology, good stability, high purity nitrogen.

Nitrogen does not contain hydrogen, suitable for hydrogen, oxygen has strict requirements of the place.

Deoxidizer and heater using high temperature materials, safe and reliable.

The preheater added in the device can recover the heat of nitrogen after deoxidation in the deoxidizer, which can save energy consumption by more than 30%.

Adsorption dryer used in addition to CO and deep dehydration, adsorption capacity, adsorption time, low energy consumption.

Drying machine imported from Germany, Siemens PLC control, safe and reliable.

Dideoxy tower structure with a prepared, can be added in the continuous use of the catalyst to meet the user's continuous non-stop use.

Dual-use heat with a reserve design, to ensure the heating temperature while improving reliability.

After deoxidization of the carbon catalyst used without impurities and residual toner, no purge can be added directly to the carbon catalyst.

Equipped with automatic interlocking vent, a variety of fault alarm.

Technical indicators

Nitrogen production: 10 ~ 800Nm / h Purity of nitrogen: ≥ Carbon dioxide content: ≤ PPm

Pressure drop: 0.1Mpa Oxygen content: 99.9995% 5 ≤ 5PPm Nitrogen atmospheric dew point: -60 ℃
